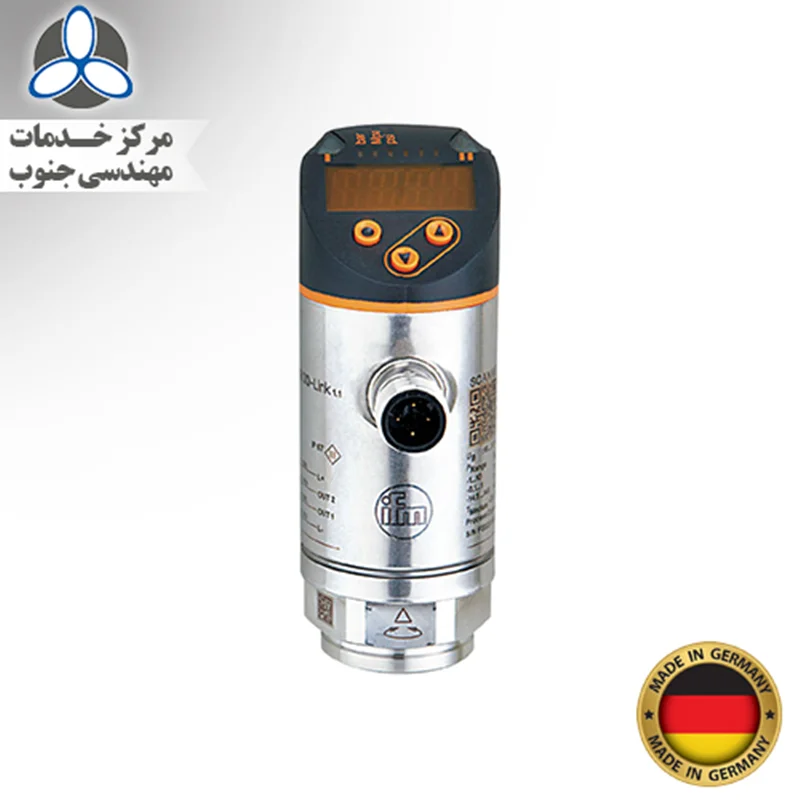

سنسور فشار با نمایشگر دیجیتال مدل PN7071 برند IFM آلمان

PN-250-SER14-QFRKG/US/ /V

از {{model.count}}
محصول مورد نظر موجود نمی‌باشد.
تعداد
نوع
  • {{value}}
نرخ ها به روز است، جهت تخفیف تماس بگیرید
کمی صبر کنید...

سنسور فشار مدل PN7071 از کمپانی IFM به عنوان یک سنسور صنعتی با نمایشگر دیجیتال است که برای اندازه گیری فشار نسبی در محدوده 0  تا 250 بار طراحی شده است که در سیستم های اتوماسیون صنعتی، هیدرولیکی و پنوماتیکی کاربرد دارند.

مشخصات فنی سنسور فشار PN7071:

  1. محدوده اندازه گیری فشار: 250...0 bar
  1. فشار کاری مجاز: 500 bar
  2. مجهز به کانکتور با روکش Gold
  3. حسگر: metallic thin film cell
  4. خروجی ها: switching signal; IO-Link; (configurable)
  5. نوع خروجی: PNP/NPN
  6. دقت سوییچینگ: 0.5 ±>;
  7. تکرارپذیری: 0.1 ±>; (with temperature fluctuations < 10 K)
  8. تاثیر پذیری دمایی: 002; (80...25- °C)
  9. طراحی مقاوم: stainless steel (630/1.4542/17-4 PH); stainless steel (316L/1.4404); PBT+PC-GF30; PBT-GF20; PC
  10. دارای استاندارد حفاظت /IP67 IP65
  11. دمای کاری سیال: 80...25-
  12. اتصال فرآیند: threaded connection G 1/4 internal thread

ویژگی های اصلی سنسور فشار PN7071:

  1. طراحی مقاوم: بدنه از فولاد ضد زنگ و پلاستیک های تقویت شده برای مقاومت در برابر شرایط سخت صنعتی
  2. نمایشگر عددی  (4 digit 7-segment)
  3. پشتیبانی از  IO-Link: برای تنظیمات پیشرفته و یکپارچه سازی در سیستم های اتوماسیون صنعتی
  4. با توجه به دقت بالا، استحکام و مقاوم بودن بدنه این سنسور و همچنین قابلیت اتصال به سیستم های دیجیتالی(IO-LINK) این سنسور از کمپانی IFM، مناسب برای صنایع مختلف از قبیل:

- صنایع خودروسازی: کنترل، مانیتورینگ و تشخیص نشتی و یا افت فشار در خطوط

- غذایی و دارویی: استفاده در سیستم های CIP/SIP و مانیتورینگ فشار در خطوط انتقال مایعات

- صنایع شیمیای و پتروشیمی: اندازه گیری فشار در خطوط انتقال مایعات خورنده،گازها که با توجه به نوع متریال به کار برده در ساختار این سنسور دارای مقاومت بالا در برابر دما، فشار و مواد خورنده می باشد.

- نفت و گازها: مناسب در واحدهای کمپرسور، مخازن تحت فشار و خطوط لوله

- نیروگاه ها و صنایع تولید انرژ‌ی: اندازه گیری فشار در بویلرها، پمپ ها و سیستم های بخار

- ماشین سازی و اتوماسیون صنعتی: کنترل عملکرد سیلندرها، پمپ ها و موتورهای هیدرولیکی و تنظیم و پایش فشار در سیستم های اتوماسیون صنعتی

- صنایع فولادی: پایش، کنترل و مانیتورینگ فشار فرآیندی درسیستم های هیدرولیک و پنوماتیک ماشین آلات، کوره ها و تجهیزات حرارتی، سیستم روانکاری بلبرینگ ها، غلطک ها و چرخ دنده ها، کنترل فشار در پمپ های آب صنعتی و تشخیص نشتی در مدارهای خنک کننده یا فیلترهای صنعتی

برای اطلاعات بیشتردر مورد سنسور فشار PN7071 از کمپانی IFM کارشناسان شرکت مهندسی جنوب در کنار شما خواهند بود. لازم به ذکر است، شرکت مهندسی جنوب از سال 1363 به عنوان تأمین کننده محصولات این کمپانی می باشد. جهت کسب اطلاعات بیشتر و استعلام قیمت با کارشناسان ما تماس بگیرید.

با کلیک روی لینک زیر دیتاشیت سنسور فشار ifm PN7071 را دانلود نمایید:

PN7071-02_EN-US.pdf

Product characteristics

Number of inputs and outputs
Number of digital outputs: 2
Measuring range
0...400 bar
0...5800 psi
0...40 MPa
Process connection
threaded connection G 1/4 internal thread

Application

Special feature
Gold-plated contacts
Measuring element
metallic thin film cell
Application
for industrial applications
Media
liquids and gases
Medium temperature[°C]
-25...80
Min. bursting pressure
1700 bar
24650 psi
170 MPa
Pressure rating
800 bar
11580 psi
80 MPa
Vacuum resistance
-1000 mbar
-0.1 MPa
Type of pressure
relative pressure

Electrical data

Operating voltage[V]
18...30 DC; (to SELV/PELV)
Current consumption[mA]
< 35
Min. insulation resistance[MΩ]
100; (500 V DC)
Protection class
III
Reverse polarity protection
yes
Power-on delay time[s]
< 0.3
Integrated watchdog
yes

Inputs / outputs

Number of inputs and outputs
Number of digital outputs: 2

Outputs

Total number of outputs
2
Output signal
switching signal; IO-Link; (configurable)
Electrical design
PNP/NPN
Number of digital outputs
2
Output function
normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC[V]
2.5
Permanent current rating of switching output DC[mA]
150; (200 (...60 °C) 250 (...40 °C))
Switching frequency DC[Hz]
< 170
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes

Measuring/setting range

Measuring range
0...400 bar
0...5800 psi
0...40 MPa


Factory setting / CMPT = 2
Set point SP
4...400 bar
40...5800 psi
0.4...40 MPa
Reset point rP
2...398 bar
20...5780 psi
0.2...39.8 MPa
Min. difference between SP and rP
2 bar
40 psi
0.2 MPa
In steps of
2 bar
20 psi
0.2 MPa


Status_B High Resolution / CMPT = 3
Set point SP
3...400 bar
49...5802 psi
0.3...40 MPa
Reset point rP
1...398 bar
20...5773 psi
0.1...39.8 MPa
Min. difference between SP and rP
2 bar
30 psi
0.2 MPa
In steps of
1 bar
1 psi
0.1 MPa

Accuracy / deviations

Switch point accuracy[% of the span]
< ± 0,5
Repeatability[% of the span]
< ± 0,1; (with temperature fluctuations < 10 K)
Characteristics deviation[% of the span]
< ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line;   LS = limit value setting)
Hysteresis deviation[% of the span]
< ± 0,25
Long-term stability[% of the span]
< ± 0,05; (per 6 months)
Temperature coefficient zero point[% of the span / 10 K]
0,2; (-25...80 °C)
Temperature coefficient span[% of the span / 10 K]
0,2; (-25...80 °C)

Response times

Response time[ms]
< 3
Delay time programmable dS, dr[s]
0...50

Software / programming

Parameter setting options
hysteresis / window; normally open / normally closed; switching logic;   switch-on/switch-off delay; Damping; Display unit

Interfaces

Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9
SIO mode
yes
Required master port type
A; (when pin 2 not connected: B)
Process data analogue
1
Process data binary
2
Supported DeviceIDs
Type of operation
DeviceID
Factory setting / CMPT = 2
399
PN7000
307
Status_B High Resolution / CMPT = 3
597
Note
For further information please see the IODD PDF file under     "Downloads"


Factory setting / CMPT = 2
Profiles
Smart Sensor: Process Data Variable; Device Identification, Device   Diagnosis
Min. process cycle time[ms]
2.3
IO-Link resolution pressure
1 bar
0.1 MPa
IO-Link process data (cyclical)
function
bit length
pressure
14
binary switching information
2
IO-Link functions (acyclical)
application specific tag


Status_B High Resolution / CMPT = 3
Profiles
Smart Sensor ED2: Digital Measuring Sensor (0x000A), Identification and   Diagnosis (0x4000)
Min. process cycle time[ms]
3
IO-Link resolution pressure
0.2 bar
0.02 MPa
IO-Link process data (cyclical)
function
bit length
pressure
16
device status
4
binary switching information
2
IO-Link functions (acyclical)
application specific tag

Operating conditions

Ambient temperature[°C]
-25...80
Storage temperature[°C]
-40...100
Protection
IP 65; IP 67

Tests / approvals

EMC
DIN EN 61000-6-2

DIN EN 61000-6-3

Shock resistance
DIN EN 60068-2-27
50 g (11 ms)
Vibration resistance
DIN EN 60068-2-6
20 g (10...2000 Hz)
MTTF[years]
214
UL approval
UL approval no.
J003
Pressure Equipment Directive
Sound engineering practice; can be used for group 2 fluids; group 1   fluids on request

Mechanical data

Weight[g]
240
Housing
cylindrical
Dimensions[mm]
Ø 34 / L = 90.7
Materials
stainless steel (630/1.4542/17-4 PH); stainless steel (316L/1.4404);   PBT+PC-GF30; PBT-GF20; PC
Materials (wetted parts)
stainless steel (630/1.4542/17-4 PH)
Min. pressure cycles
100 million
Tightening torque[Nm]
25...35; (recommended tightening torque; depends on lubrication, seal   and pressure rating)
Process connection
threaded connection G 1/4 internal thread
Restrictor element integrated
no (can be retrofitted)

Displays / operating elements

Display
Display unit
3 x LED, green (bar, psi, MPa)
switching status
2 x LED, yellow
measured values
alphanumeric display, red/green 4-digit

Remarks

Pack quantity
1 pcs.

Electrical connection

Connection
Connector: 1 x M12; coding: A; Contacts: gold-plated
