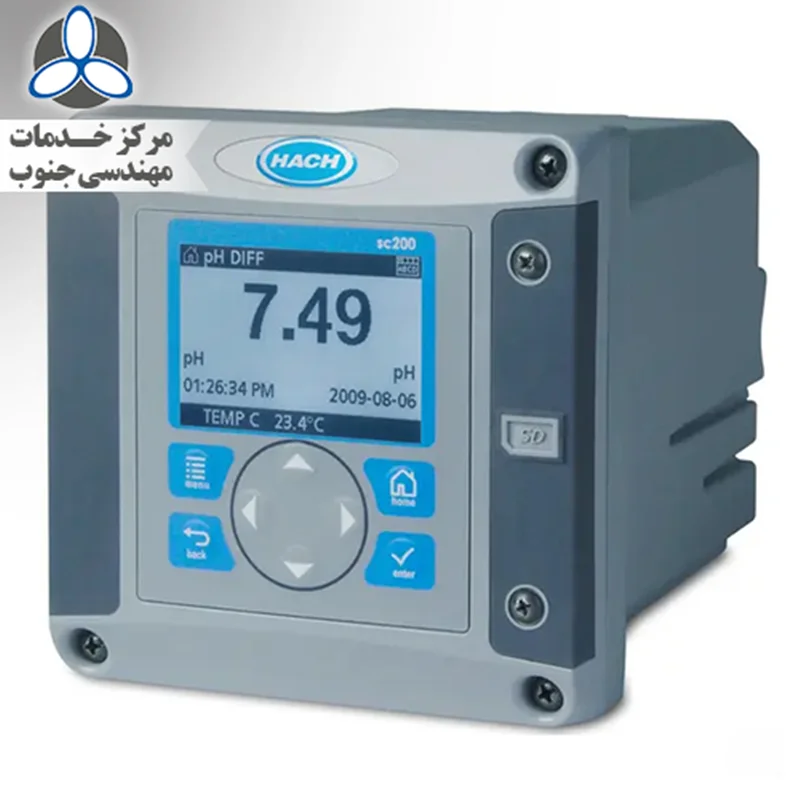

کنترلر مدل SC200 کمپانی HACH آمریکا

• دریافت همزمان 1 یا 2 سنسور
• قابلیت نمایش عدد و گراف برای هر پارامتر به صورت مجزا
• قابلیت ذخیره سازی اطلاعات در فواصل دلخواه

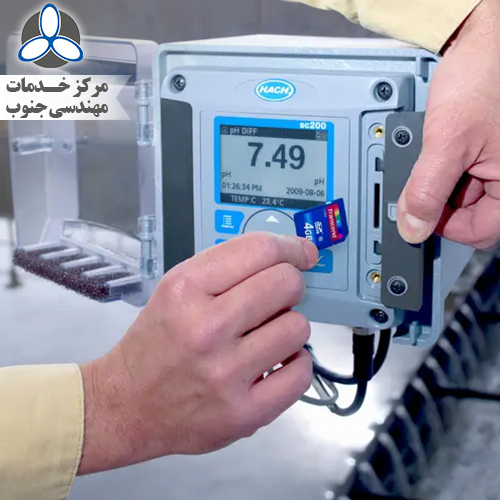

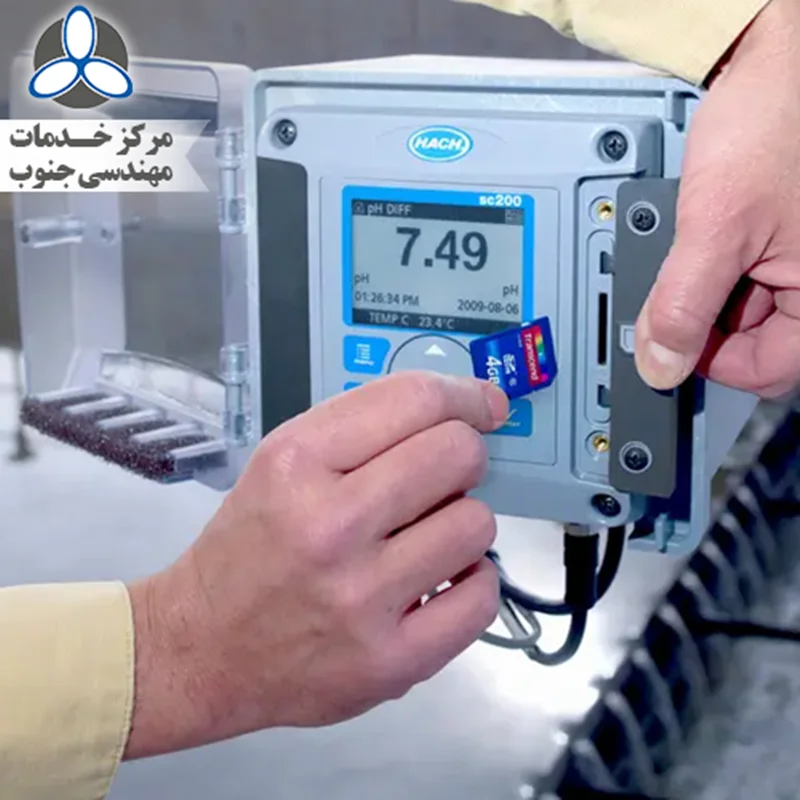

• قابلیت تخلیه اطلاعات از طریق پورت MMC
• درجه حفاظت IP66
• داراي واسط هاي كاربري:
  1. Modbus
  2. Profibus
  3. 20 ... Ma 4
  4. Relay

در صورت نياز به اطلاعات بيشتر با كارشناسان اين شركت تماس حاصل فرمائيد تا صميمانه در خدمتتان باشيم .

Specifications

Analog Output Functional Mode: Linear, logarithmic, bi-linear, PID

Analog Outputs: Two (Five with optional expansion module) isolated current outputs, max 550 Ω, Accuracy: ± 0.1% of FS (20mA) at 25 °C, ± 0.5% of FS over -20 °C to 60 °C range

Operational Mode: measurement or calculated value

Communication: MODBUS RS232/RS485, PROFIBUS DPV1, or HART 7.2 optional

Communication: HART and two 4-20mA outputs

Communication: Capabilities  HART

Conduit Openings: 1/2" NPT Conduit

Dimensions (H x W x D): 144 mm x 144 mm x 181 mm

Display: Graphic dot matrix LCD with LED backlighting, transreflective

Display Resolution: 240 x 160 pixels

Display Size: 48 x 68 mm

Electrical Certifications:

EMC

   :CE compliant for conducted and radiated emissions

CISPR 11 (Class A limits) -

    EMC Immunity: EN 61326-1 (Industrial limits) -

Safety

:cETLus safety mark for

- General Locations per ANSI/UL 61010-1 & CAN/CSA C22.2. No. 61010-1

- Hazardous Location Class I, Division 2, Groups A,B,C & D (Zone 2, Group IIC) per FM 3600 / FM 3611 & CSA C22.2 No. 213 M1987 with approved options and appropriately rated Class I, Division 2 or Zone 2 sensors

cULus safety mark

 General Locations per UL 61010-1 & CAN/CSA C22.2. No. 61010-1 -

cULus safety mark
 General Locations per UL 61010-1 & CAN/CSA C22.2. No. 61010-1 -

Enclosure Rating: IP66 / NEMA 4X

Length: 181 mm

Manual Languages: Bulgarian, Chinese (PRC), Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Lithuanian, Polish, Portuguese (Brazil), Portuguese (Portugal), Romanian, Russian, Slovak, Slovenian, Spanish, Swedish, Thai, Turkish

Material Enclosures:

Polycarbonate

Aluminium (powder coated)

Stainless steel

Mounting Configurations: Wall, pole, and panel mounting

Operating Temperature Range: -20 - 60 °C at 0 - 95% RH (non-condensing)

Power Options: 100 - 240 VAC, no power cord

Power Requirements (Hz): 50 - 60 Hz

Power Requirements (Voltage): 100 - 240 VAC

Power Supply: Without power cord

Relay Functions: Scheduler (timer), alarm, feeder control, event control, pulse width modulation, frequency control, and warning

Relays: Four electromechanical SPDT (Form C) contacts, 1200 W, 5 A

Security Levels: 2 password-protected levels

Sensor Input #1: Analog Conductivity

Sensor Input #2: None

Storage Conditions: -20 °C to 70 °C

از لینک زیر دیتاشیت کنترل دیجیتال مدل SC200 را دانلود نمایید

SC200.pdf
