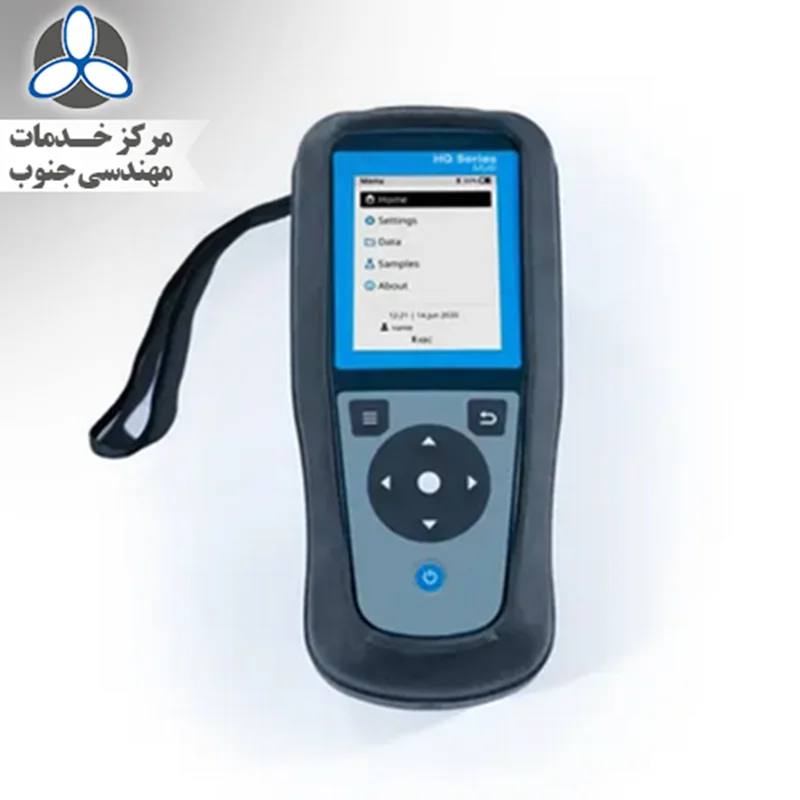

مولتی پارامتر پرتابل مدلHQ2200 کمپانی هک | HQ2200 Portable Multi-Meter HACH
Product Number: LEV015.53.2200A
دستگاه مولتی پارامتر پرتابل مدل HQ2200 ساخت کمپانی هک
- پرتابل و قابل حمل
- اندازه گیری پارامتر های: pH/ORP/EC/TDS/DO
- طول کابل : 5 متر
- قابلیت ذخیره داده تا 10000 داده
- اتصال به کامپیتور و لپ تاپ با استفاده از USB
- قابلیت نمایش سه پارامتر در یک لحظه داخل صفحه نمایش
- دو کاناله و قابلیت اتصال دو عدد الکترود و پروب
- قابلیت شارژ با کابل USB و کابل برق
- شناسایی اتوماتیک بافرهای کمپانی های متفاوت و HACH
- شناسایی اتوماتیک الکترودهای DO , LDO یا LBOD
- کالیبراسیون سه نقطه در بافرهای 1 و 4 و 7 و 10
Specifications
Accessories Included | USB charger, power cable, and clips |
Automatic Buffer Recognition | Yes |
Backlight | Yes |
Barometric Pressure Measurement | Automatic compensation of DO when using an LDO or LBOD probe |
Calibration | Demal (1D/ 0.1D/ 0.01D); Molar (0.1M/ 0.01M/0.001M); NaCl (0.05%; 25µS/cm; 1000µS/cm; 18mS/cm); Standard sea water; User defined |
Calibration Intervals/Alerts/Reminder | Off, selectable from 2 hours to 7 days |
Certifications | CE, FCC, ISED, RCM, KC, ETL Verified: US DOE/ NRCan Energy Efficiency, RoHS |
Conductivity Measurement Range | Yes |
Custom Calibration Standards | Yes |
Data Export | USB connection to PC or USB storage device (limited to the storage device capacity). |
Data Memory | 10,000 data points |
Data Storage | Automatic in Press to Read Mode and Interval Mode. Manual in Continuous Read Mode. |
Dimensions (H x W x D) | 63 mm x 97 mm x 220 mm |
Display | Up to 3 parameters at a time, dependent on HQ model |
Display Type | 536x336 Mono-TFT |
DO Measurement Range | 0.1 - 20.0 mg/L (ppm), 1 - 200% saturation |
DO Resolution | 0.1 |
Enclosure Rating | IP67 (with battery compartment installed) |
GLP Features | Date; Time; Sample ID; Operator ID, Calibration |
Inputs | 2 |
Instrument | Portable |
ISE Direct Measurement Range | No |
ISE Electrode Calibration | No |
Kit? | Meter only |
Languages | English, Chinese - Simplified, Spanish, French, German, Italian, Japanese, Turkish, Dutch, Portuguese (PT & BR), Korean, Danish, Swedish, Polish, Norwegian, Hungarian, Greek, Finnish, Czech, Romanian, Croatian, Bulgarian, Slovak, Lithuanian, Estonian, Slovenian, Russian |
Lock Function | Continuous / Auto-stabilization ("press to read") / At Interval |
Measurement Method | Probe specific programmed method settings |
Model | HQ2200 Multi/2 Channels |
mV Measurement at Stable Reading | Yes |
mV Measurement Range | Yes |
mV Resolution | 0.1 mV |
Operating Error Messages | Clear text error messages displayed |
Operating Humidity | 90% (non-condensing) |
Operating Interface | Soft Touch Keypad |
Operating Temperature | 0 - 60 °C |
ORP Electrode Calibration | Predefined ORP standards (including Zobell's solution) |
Parameter | pH, Conductivity, TDS, Salinity, Dissolved Oxygen (DO), ORP |
pH Buffer Sets | Colour-coded: 4.01, 7.00, 10.01 pH; IUPAC: 1.679, 4.005, 7.000, 10.012, 12.45 DIN: 1.09, 4.65, 9.23 User-defined custom buffer sets |
pH Electrode calibration | 1 - 3 Calibration points Calibration summary data logged and displayed |
pH Measurement Range | 0 - 14 pH |
pH Resolution | Selectable: 0.001/0.01/0.1 pH |
Power Supply | Rechargeable lithium-ion battery 18650 (internal) Class II, USB power adapter: 100 - 240 VAC, 50/60 Hz input; 5 VDC at 2 A USB power adapter output (external) |
Probe Type | Intellical Standard Laboratory or Rugged Field |
Probes included | None |
Protection Class | IEC Class III (SELV (Separated/Safety Extra-Low Voltage) powered); external |
Salinity Measurement Range | 0 - 42 (ppt) (‰) |
Salinity Resolution | 0.01 (ppt) (‰) |
Sensor A | None |
Sensor B | None |
Sensor C | None |
Storage Conditions | -20 - 60 °C, max. 90% relative humidity (non-condensing) |
TDS Measurement Range | 0.00 mg/L - 50.0 g/L NaCl |
TDS Resolution | 0.01 mg/L - 0.1 g/L upon measuring range |
Temperature Compensation | Automatic Temperature compensation for pH |
Temperature Measurement | °C or °F |
Temperature Resolution | 0.1 °C |
Type of measurement | Field Measurements |
Warranty | 12 months |
از لینک زیر دیتاشیت مولتی پارامتر پرتابل مدلHQ2200 را دانلود نمایید
